1 / 3Specifications
Specifications
- Brand
- AL13
- Model
- FR100
- Finish
- Satin Black
- Color
- Black
- Construction
- Flow Formed
- Sizes
- 20x9, 20x9.5, 20x10, 20x10.5, 20x11, 20x12, 21x9, 21x9.5, 21x10.5, 21x11, 21x12, 22x9, 22x9.5, 22x10, 22x10.5, 22x11, 22x11.5, 22x12
- Bolt patterns
- 5x112, Custom drilled
- Offset range
- +10
- Delivery
- 2 to 7 days

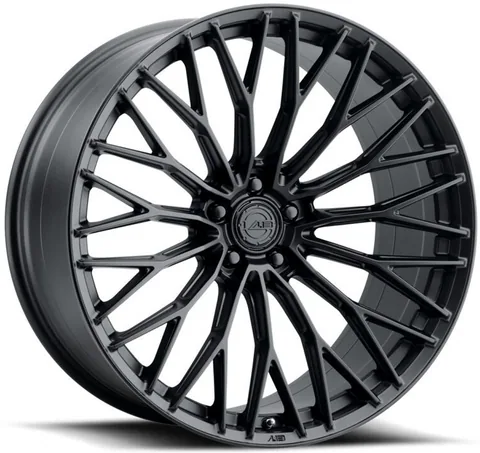

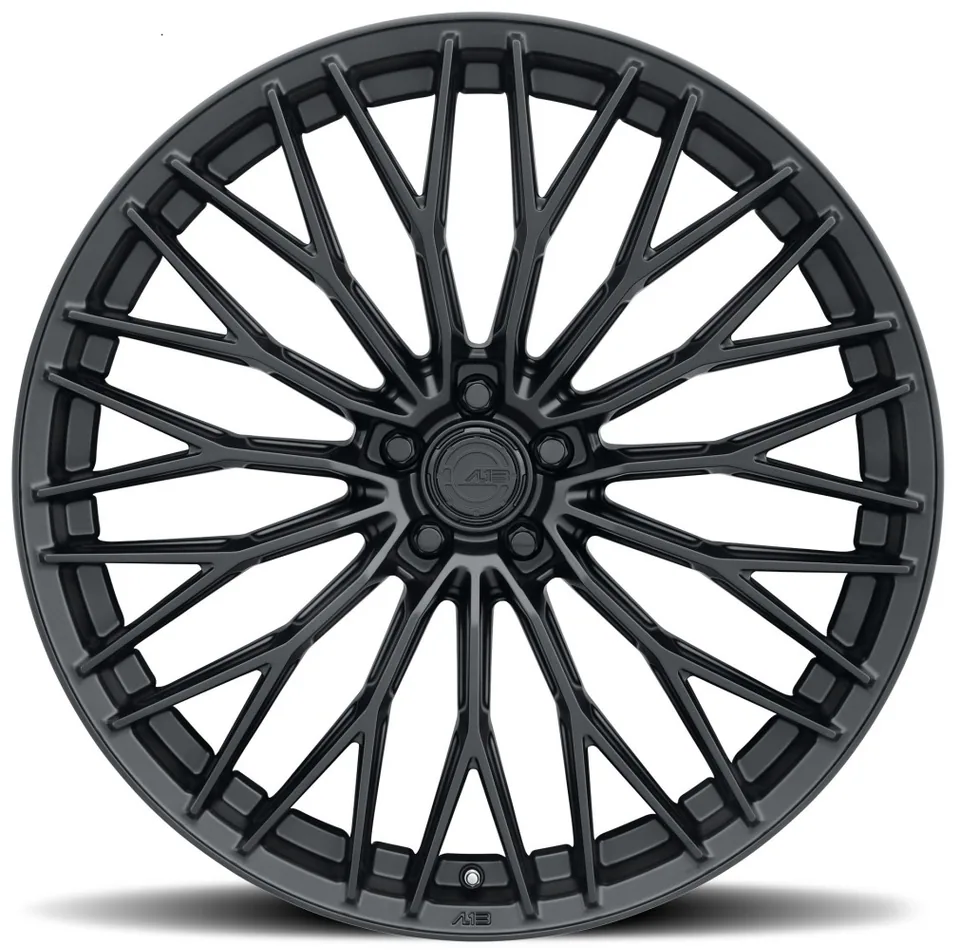

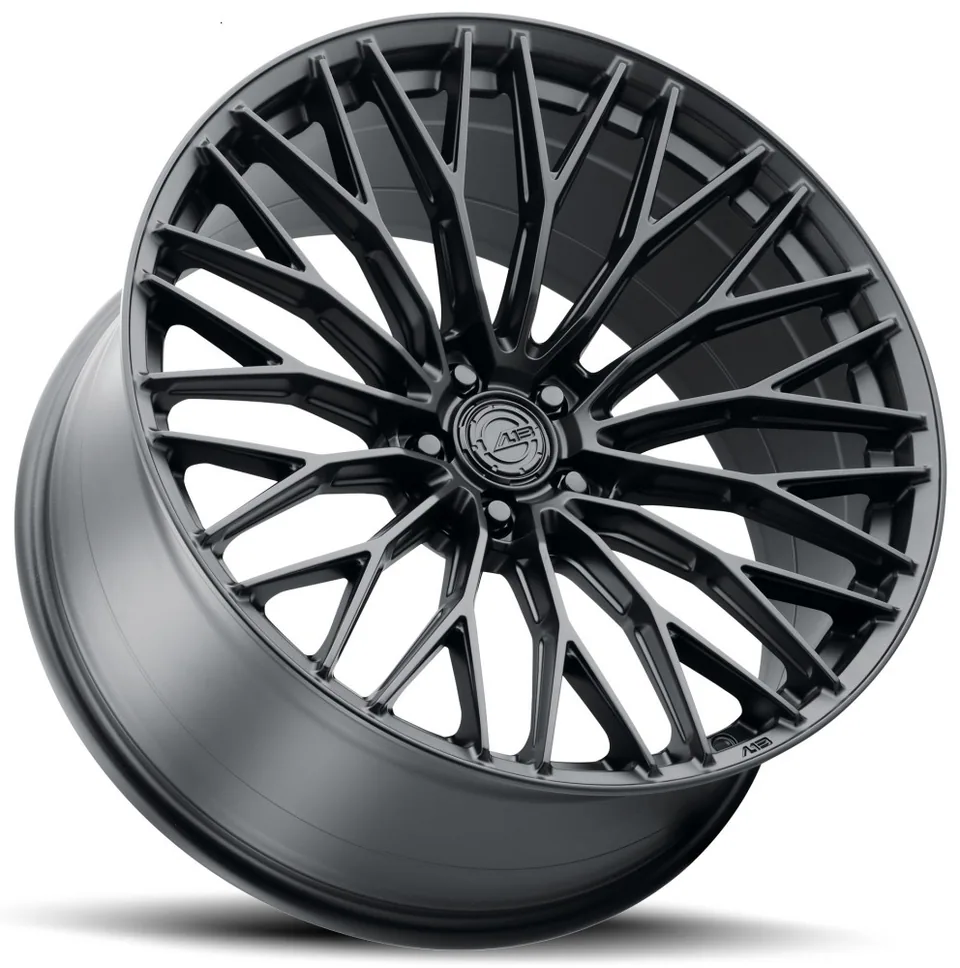

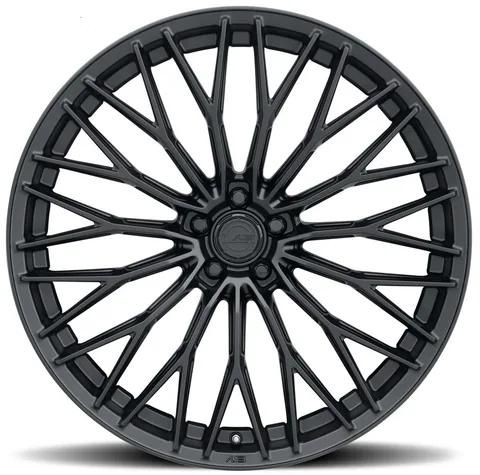

About the AL13 FR100 in Satin Black
Here's the AL13 FR100 in Satin Black, a split 15+ spoke design. Flow formed, so it's lighter than a cast wheel without asking forged money for it. Every one of these is built to order, so give it the lead time on the listing.
It's a common pick on the Mercedes Benz E Class and Porsche Cayenne. Tell us your car and you'll only see the sizes that fit it. We've already done the homework on the hub and the caliper, so that part isn't on you. Add tires and the set ships mounted and balanced, ready to bolt on.
Sizes and part numbers
Show all 27 sizesHide sizes
| Size | Bolt pattern | Offset | Part number |
|---|---|---|---|
| 20x9 | Custom drilled | +10 mm to +51 mm | 090BBBCC FR100SBLK-P1 |
| 20x9.5 | Custom drilled | +1 mm to +44 mm | 095BBBCC FR100SBLK-P2 |
| 20x10 | Custom drilled | -16 mm to +23 mm | 010BBBCC FR100SBLK-P3 |
| 20x10 | Custom drilled | +7 mm to +50 mm | 010BBBCC FR100SBLK-P2 |
| 20x10.5 | Custom drilled | -9 mm to +30 mm | 005BBBCC FR100SBLK-P3 |
| 20x10.5 | Custom drilled | +13 mm to +56 mm | 005BBBCC FR100SBLK-P2 |
| 20x11 | 5x112 | +10 mm | 01151210 FR100SBLK-P3 |
| 20x11 | Custom drilled | -3 mm to +36 mm | 011BBBCC FR100SBLK-P3 |
| 20x11 | Custom drilled | +19 mm to +62 mm | 011BBBCC FR100SBLK-P2 |
| 20x12 | Custom drilled | +10 mm to +48 mm | 012BBBCC FR100SBLK-P3 |
| 21x9 | Custom drilled | +20 mm to +50 mm | 190BBBCC FR100SBLK-P1 |
| 21x9.5 | Custom drilled | -11 mm to +35 mm | 195BBBCC FR100SBLK-P2 |
| 21x9.5 | Custom drilled | +26 mm to +56 mm | 195BBBCC FR100SBLK-P1 |
| 21x10.5 | Custom drilled | +2 mm to +48 mm | 105BBBCC FR100SBLK-P2 |
| 21x11 | Custom drilled | +9 mm to +54 mm | 111BBBCC FR100SBLK-P2 |
| 21x12 | Custom drilled | 0 mm to +39 mm | 112BBBCC FR100SBLK-P3 |
| 21x12 | Custom drilled | +21 mm to +66 mm | 112BBBCC FR100SBLK-P2 |
| 22x9 | Custom drilled | +15 mm to +50 mm | 290BBBCC FR100SBLK-P1 |
| 22x9.5 | Custom drilled | +21 mm to +56 mm | 295BBBCC FR100SBLK-P1 |
| 22x10 | Custom drilled | -4 mm to +41 mm | 210BBBCC FR100SBLK-P2 |
| 22x10 | Custom drilled | +26 mm to +62 mm | 210BBBCC FR100SBLK-P1 |
| 22x10.5 | Custom drilled | -17 mm to +20 mm | 205BBBCC FR100SBLK-P3 |
| 22x10.5 | Custom drilled | +2 mm to +39 mm | 205BBBCC FR100SBLK-P2 |
| 22x11 | Custom drilled | -11 mm to +26 mm | 211BBBCC FR100SBLK-P3 |
| 22x11 | Custom drilled | +9 mm to +54 mm | 211BBBCC FR100SBLK-P2 |
| 22x11.5 | Custom drilled | +15 mm to +60 mm | 215BBBCC FR100SBLK-P2 |
| 22x12 | Custom drilled | +2 mm to +39 mm | 212BBBCC FR100SBLK-P3 |
Common questions
- Does the AL13 FR100 fit my car?
- In the right size, yes, and telling us the year, the make and the model is how you find out which. We've already done the homework on the hub and the caliper. If something we recommended doesn't fit an unmodified car, we pick it up and refund you in full.
- What bolt patterns does the AL13 FR100 Satin Black come in?
- More than one, and the one you need is whatever your hubs use. Tell us what you drive and you'll see only the sizes that match, and the full list is in the Specifications tab further up.
- Do these ship mounted with tires?
- They do when you add tires. The set arrives mounted and balanced, ready to bolt on. Wheels on their own ship one per box, and you'll be mounting them yourself.
