aFe Bladerunner Intercooler w/ Tubes 11-16 GM Diesel Trucks V8 6.6L (td) LML 46-20112

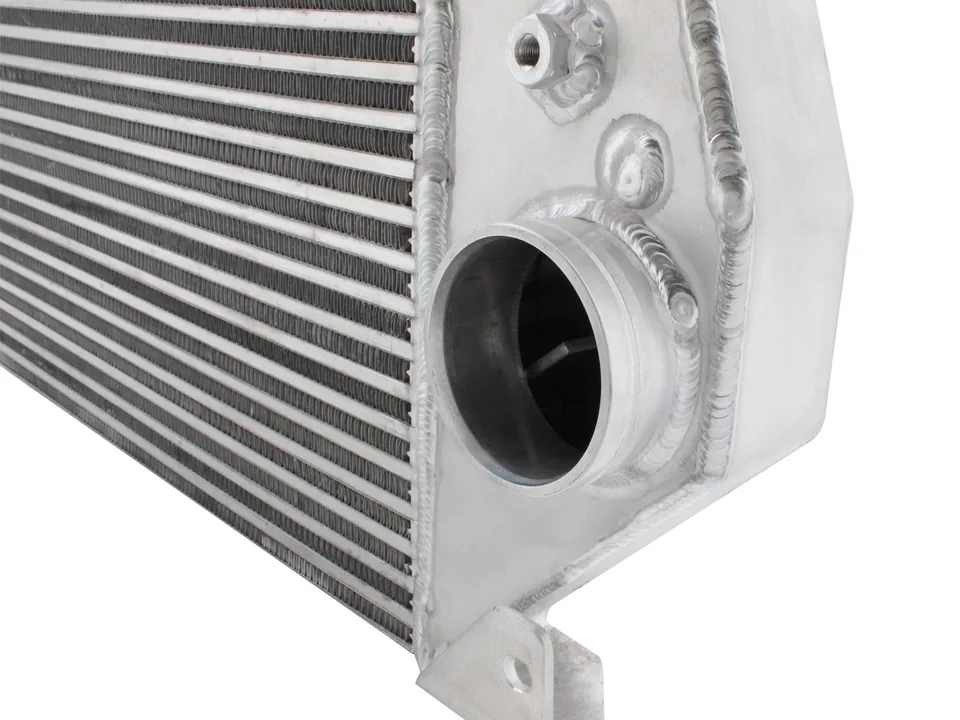

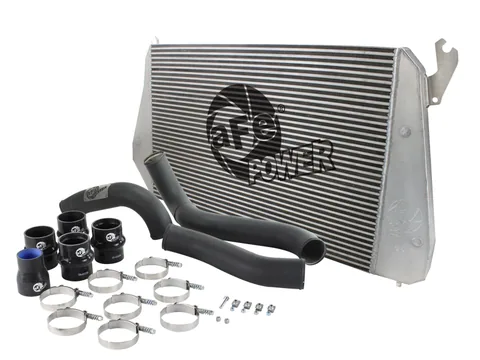

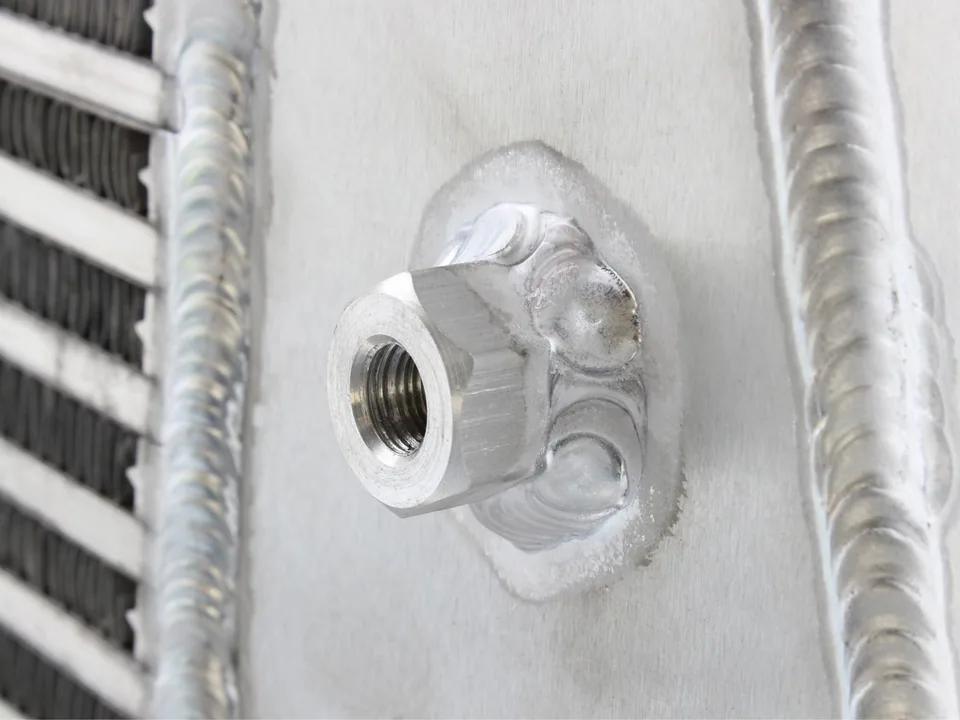

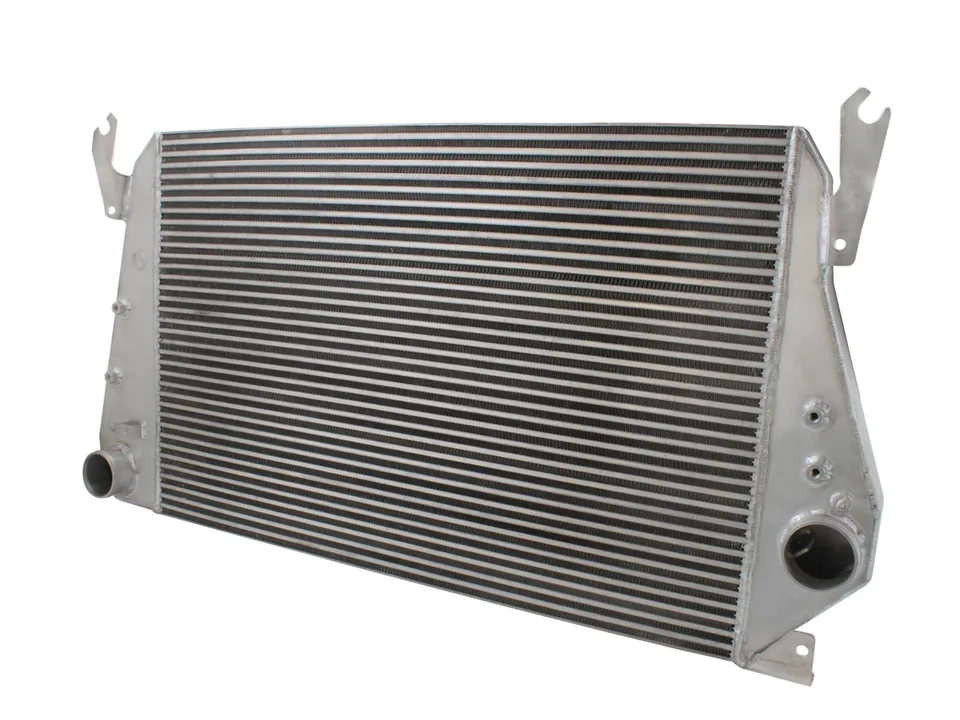

This BladeRunner Intercooler represents the next generation of intercoolers. The BladeRunner intercoolers utilize a 2.5" bar and plate design that is larger than stock and outflows OE style tube and fin core designs by 38%. End Tanks: The unique BladeRunner end tanks are constructed out of 3/16'' TIG welded aluminum plate that incorporate three multi-directional vanes. Multi-Directional Vane Technology: The BladeRunner MDV technology is used to direct hot air flow through the entire intercooler core. This allows for greater cooling than competitors units. 2.5" Bar and Plate Core Design: The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the OEM. Multiple Auxiliary Ports: Four tapped 1/8" ports are supplied on the intercooler for easy installation of gauges or nitrous oxide systems. Billet Aluminum Inlet/Outlets: Each BladeRunner Intercooler uses billet aluminum inlets and outlets for superior strength and durability. This intercooler also features 3" inlet/outlet connections mated to oversized boost tubes, included. Tig-Welded: 100% TIG-Welded by certified craftsmen for race proven strength and durability. TIG-Welding provides the strongest welds reducing stress cracks. Flow and Performance: The intercooler tubes provided are constructed of 3" mandrel bent powder-coated aluminum tubing for maximum flow. Smooth transition bends allow for low turbulence, increasing horsepower, torque and lowering EGT's. Also included, one 1/8" NPT port is provided on each tube for connecting a pressure sensor or water methanol injection. Comes complete with 4-ply heavy duty couplings and constant tension T-bolt clamps for a tight and secure installation. The BladeRunner Intercooler is test pressure rated at 200psi which is perfect for high boost applications. Emission Disclaimer: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles. VEHICLE APPLICATIONS Year Make Model SubModel Engine Fuel 2011-2016 Chevrolet Silverado 2500 HD Duramax V8 6.6L (td) Diesel 2011-2016 Chevrolet Silverado 3500 HD Duramax V8 6.6L (td) Diesel 2011-2016 GMC Sierra 2500 HD Duramax V8 6.6L (td) Diesel 2011-2016 GMC Sierra 3500 HD Duramax V8 6.6L (td) Diesel
