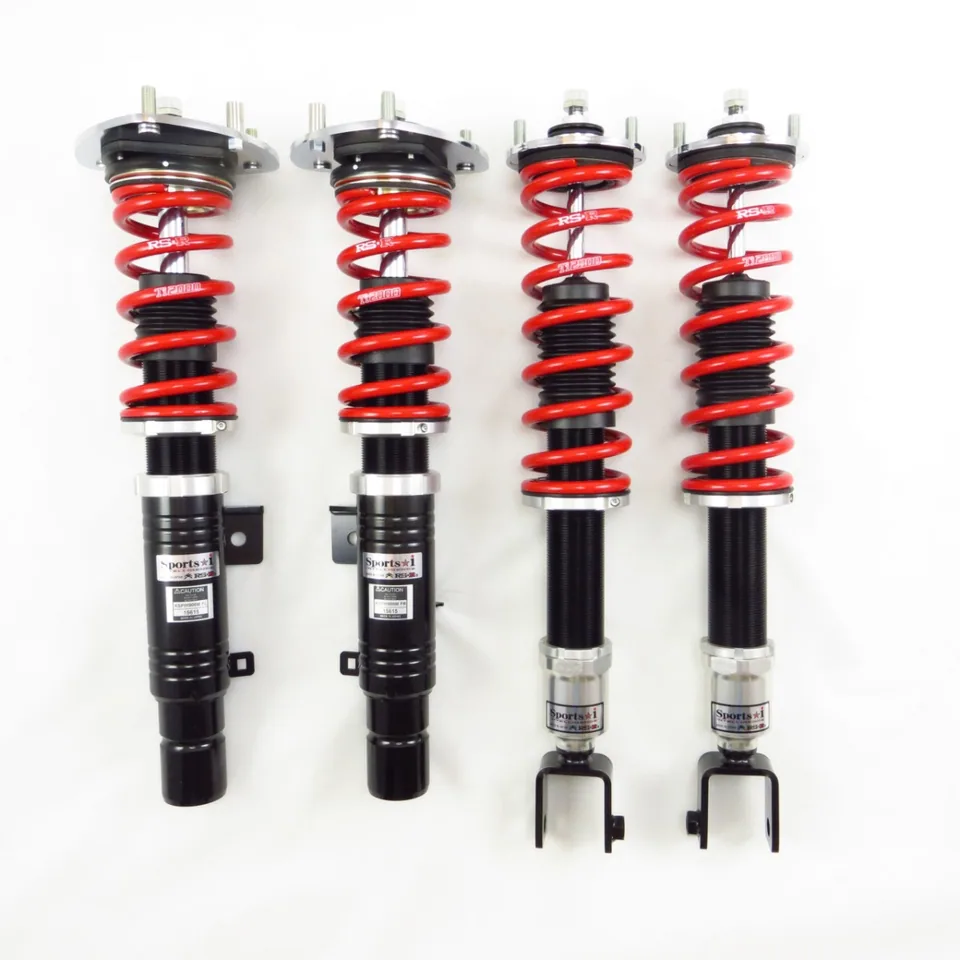

RS-R 15-20 Acura TLX Sports-i Coilovers XSPIH900M

Part#: XSPIH900M Compatibility: 2015-2020 ACURA TLX 3.5L Chassis code: Preset Approximate Height From RS-R: Front -30mm to -35mm (-1.2in to -1.4in) Rear -30mm to -35mm (-1.2in to -1.4in) Maximum Adjustment Ranges: Front 0mm to -65mm (0in to -2.6in) Rear +25mm to -110mm (+1in to -4.4in) Recommended Adjustments for Optimal Ride-ability: Front -10mm to -55mm (-0.4in to -2.2in) Rear -15mm to -60mm (-0.6in to -2.4in) Compatibility: 2015+ ACURA TLX 3.5L FWD Chassis code: Preset Approximate Height From RS-R: Front -30mm to -35mm (-1.2in to -1.4in) Rear -30mm to -35mm (-1.2in to -1.4in) Maximum Adjustment Ranges: Front 0mm to -60mm (0in to -2.4in) Rear +30mm to -100mm (+1.2in to -4.0in) Recommended Adjustments for Optimal Ride-ability: Front -10mm to -50mm (-0.4in to -2.0in) Rear -10mm to -50mm (-0.4in to -2.0in) Compatibility: 2015+ ACURA TLX 2.4L FWD Chassis code: Preset Approximate Height From RS-R: Front -25mm to -30mm (-1.0in to -1.2in) Rear -25mm to -30mm (-1.0in to -1.2in) Maximum Adjustment Ranges: Front +5mm to -60mm (+0.2in to -2.4in) Rear +30mm to -100mm (+1.2in to -4.0in) Recommended Adjustments for Optimal Ride-ability: Front +5mm to -60mm (+0.2in to -2.4in) Rear -10mm to -50mm (-0.4in to -2.0in) Spring Rates: Front 7.0kg/mm Rear 5.0kg/mm Dampers are 36 way adjustable in the front and the rear. Warranty 1 Year / 12,000 miles from the day of purchase.
