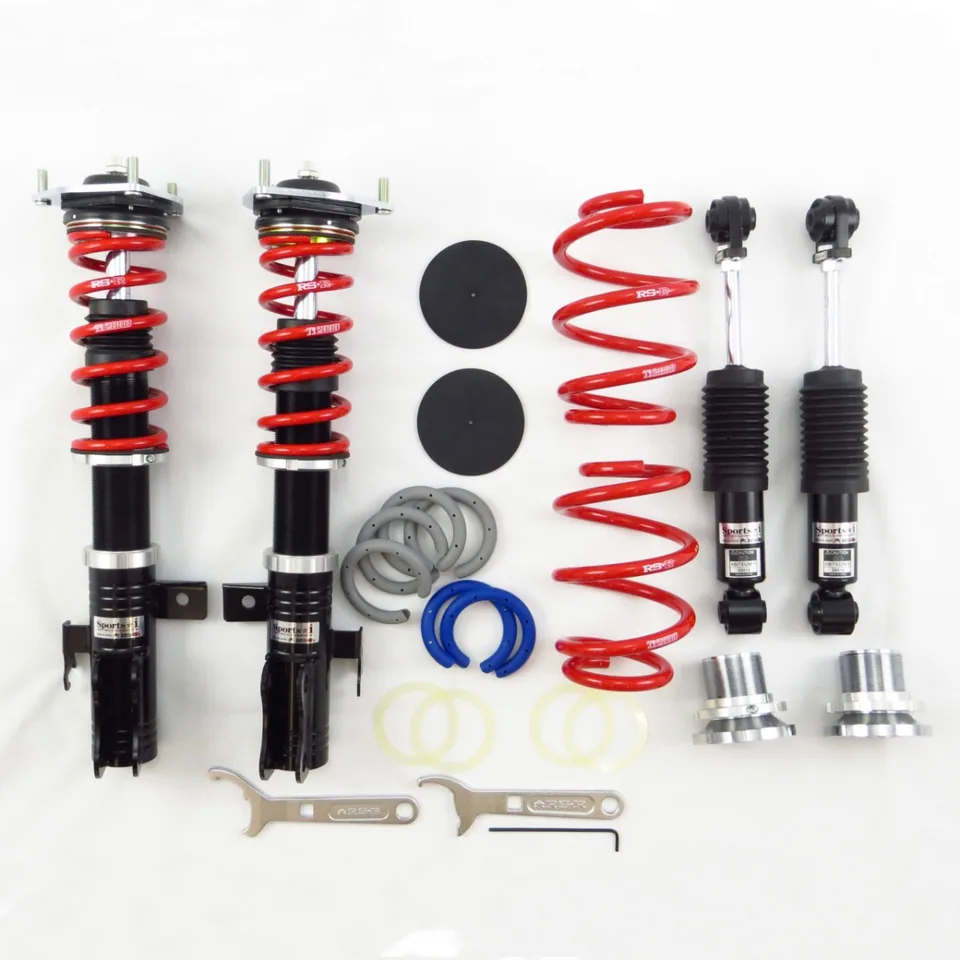

RS-R 15-17 Lexus NX200T (AGZ10) Sports-i Coilovers XBIT532M

Part#: XBIT532M Compatibility: 2015-2017 Lexus NX200T FWD & AWD Chassis code: AGZ10 & AGZ15 Specifications for FWD: Preset Approximate Height From RS-R: Front -45mm (-1.8inch) Rear -45mm (-1.8inch) Maximum Adjustment Ranges: Front -20mm to -125mm (-0.8inch to -5.0inch) Rear -25mm to -80mm (-1.0inch to -3.1inch) Recommended Adjustments for Optimal Ride-ability: Front -30mm to -70mm (-1.2inch to -2.8inch) Rear -25mm to -80mm (-1.0inch to -3.1inch) Specifications for AWD: Preset Approximate Height From RS-R: Front -45mm (-1.8inch) Rear -45mm (-1.8inch) Maximum Adjustment Ranges: Front -20mm to -125mm (-0.8inch to -5.0inch) Rear -30mm to -80mm (-1.2inch to -3.1inch) Recommended Adjustments for Optimal Ride-ability: Front -30mm to -70mm (-1.2inch to -2.8inch) Rear -30mm to -80mm (-1.2inch to -3.1inch) Spring Rates: Front 6.00kg/mm Rear 6.30kg/mm Dampers are 36 way adjustable in the front and the rear. Warranty 1 Year / 12,000 miles from the day of purchase.
